High-precise, High-performance MEMS inclinometer

Applicable for industries and engineerings which precise measurement, high-stability and reliability are necessary

Micro-processor mounted for stable sensing and data processing

Utilizing as EL-BEAM sensor by combining with aluminum-profile

Q-Mark / Certificate of State Registration (Russia)

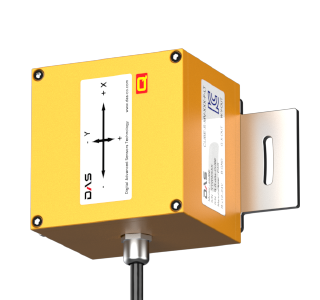

Inclinometer CUBE is a high-precise, high-performance inclino- meter specialized in civil engineering, geotechnical engineering and geostructural monitoring. CUBE is widely applicable for industries which precise measurement is necessary such as measuring movement of bridge, structures and constructions, measurnig ground deformation due to tunneling or boring.

다운로드

Product Specifications

General Specifications

Item	Specification	Remarks
Measuring Axis	Uniaxial / Biaxialtd
Measuring Range	±30˚ (deg)	MAX ±90˚ (deg)
Resolution	0.001˚ (deg)
Non-Linearity	0.1% FS
Temp. Drift	＜0.0056˚ (deg)/℃
Response	＜0.5sec
Output	-2 ~ +2 Diff.Vdc 4 ~ 20mA CAN	Automatic
Power Source	10 ~ 30Vdc
Current Consumption	＜20mA	@12Vdc
Operating Temp.	-30℃~ +85℃
Waterproof	IP67
Dimensions	W65 x D65 x H55㎜	without bracket
Weight	500g
Cables	PU, 3000mm

Specify the measuring range
e.g. -90º ~ +90º (deg) or -30º ~ +60º (deg) etc.

For 2-axis specifications, individual measurement ranges can
be specified for each axis.

Sensing Directions

X-axis	Y-axis

Floor/Wall Mount can be combined by changing the basic installation bracket binding position to the bottom/side surface.

Please check the label attached to the product for the correct axis direction.

Analog Data Descriptions

Deg. from Diff.Vdc output
- Measuring Range = max range – min range
- Output V Range
  = +2V – (-2V) = 4V

e.g. Measuring range +/-10 deg, Output -1V,

Deg. from mA output
- Output mA Range
  = 20mA – 4mA = 16mA
- Zero Offset : 12mA

Installation and Composition

CUBE	Default mounting

Tripod (optional)	EL-BEAM (optional)

3-wire mA

Item	Specification	Remarks
Measuring Range	+/-1 ~ +/-30 deg
Resolution	0.0025 deg
Output	4 ~ 20mA	3-wire

Cold-proof

Item	Specification	Remarks
Current Consumption	＜1A	@12Vdc
Operating Temp.	-45 ~ +85 celsius
Weight	600g

Measuring Range : Set freely within +/-1 ~ +/-15 deg
e.g. -3 ~ +3 deg
For 2-axis specifications, individual measurement ranges can be specified for each axis.
Permanent power source is recommended for Cold-proof CUBE as the internal heating device consumes large current.

Wiring Connections

Color	Diff.Vdc	mA
RED	V+
BLACK	GND (COM)
GREEN	X+	X-OUT
WHITE	X-	Y-OUT
BLUE	Y+
PURPLE	Y-

Please wire correctly according to the output type.

The mA output is a common GND with power.

Ordering Code

[1]	S D	Uniaxial Biaxial
[2]	MV MA	-2 ~ 2Vdc output 4 ~ 20mA output
[3]	Measuring Range (Settable)
[4]	F W	For mounting sensor on a floor For mounting sensor on a wallt
[5]	LT	Cold-proof (optional)

CUBE - [1] - [2] - [3] - [4] - [5]
e.g. CUBE-D-MV-3-F

Options
- Cable length
  There is an additional cost per 1m and there is no limit to the total length, but voltage drop and noise according to the length must be considered.
- Tripod mounting and EL-BEAM
- Indicator
  Manual measurement can be performed from the CUBE installed in the measurement station using the DIGIANGLE-MULTI indicator. (MV output sensor only)
  For details, please refer to the DIGIANGLE-MULTI product information and user manual.

Notes

Specification changes after shipment will be charged for a fee, so be sure to order with the correct specifications.

Ground connection is recommended in noise occurred environment.

MEMS based inclinometer (tilt sensor) measures tilt (degree) by gravity. Check sensing directions before use.

Check wiring connections before use

12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

Specifications, design and components can be changed without prior notice to improve its performances
