제품 사양
| 항목 |
PI3070 |
PI3102 |
| OS |
WinCE 7.0 / Linux QT |
| CPU |
Cortex A8 600MHz |

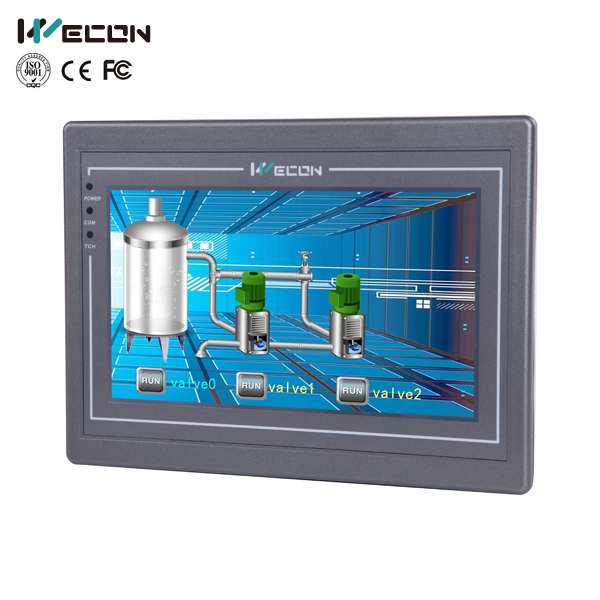

| Display |
Screen Size |
7 Inch |
10.2 Inch |
| Resolution |
800 x 480 |
| Brightness |
300 cd/㎡ |
| Contrast |
500:1 |
| Backlight |
LED (50,000 hours) |
| Color |
16,000k colors (24bit) |
260k colors (18bit) |
| Touch Screen |
고해상도 4선식 터치스크린 (감압식) |
| Storage |
Flash |
128 MB |
| RAM |
DDR3 128 MB |
| SD Card |
Compatible |

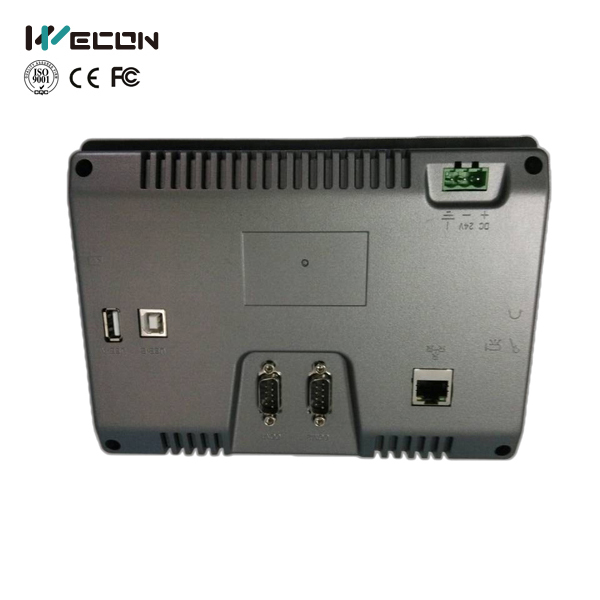

| Ports |
USB Host |
1x USB 2.0 |
| USB Client |
1x USB 2.0 |
| Serial Port |
COM1 : RS232/RS422/RS485 |
| COM2 : RS232/RS485 |
| Ethernet |
Optional |
| Power |
Power Supply |
24V DC (12-28V DC) |
| Power |
<10W |
| Withstand Voltage |
500V AC >1 min |
| Insulation Resistance |
Upon 20㏁ 500VDC |
| Seismic Resistance |
10...25Hz (X,Y,Z / 2g / 30min) |
| Dimensions |
Shell |
ABS |
| Dimensions |
W201 x H146.6 x D36.5㎜ |
W272 x H190.5 x D41.4㎜ |
| Mounting Size |
W192 x H138㎜ |
W260 x H179㎜ |
| Environment |
IP Level |
IP65 (Front Panel) |
| Storage Temperature |
-30...+70℃ |
| Working Temperature |
-10...+60℃ |
| Humidity |
10...90% RH |
| CE Certification |
EN61000-6-2:2005, EN61000-6-4:2007 Standard |
| FCC Certification |
FCC Class A |
| Software |
PI Studio |
|
|
