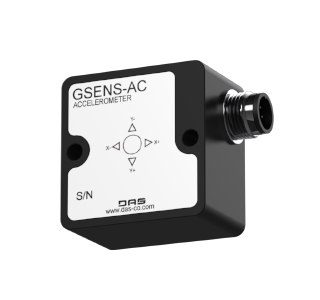

GSENS-AC Technical Datasheet
  •
    • GSENS-AC Technical Datasheet
  •
  •
  • MEMS based high performance accelerometer
  • High strength aluminium housing for collecting undamped vibration
  • Rapidly responsive data processing / Noise reduction circuit applied
  • For geotechnical engineering, geostructural monitoring and other measurement
  • Q-mark (KO)
  •
  •
  •  The implantable MEMS-based accelerometer is available in a size- and cost-effective package with a metal housing that has no fixed damping, fast response speed, and high performance that can withstand opposing shielding circuits.

    • 다운로드

    Specifications

    Item Specifications Remark
    Measuring
    Axis    		 Uniaxial X or Y or Z
    Uni-Dual X or Y or Z
    Biaxial X+Y or X+Z
    Measuring
    Range    		 ±2g ±6g ±12g
    Senistivity 3,500mV 2,833mV 2,666mV 1g
    2,500mV 2,500mV 2,500mV 0g
    1,500mV 2,167mV 2,334mV -1g
    Zero Drift ±1mg/℃
    Transverse
    Sensitivity    		 ±1%
    Non-Linearity ±0.25% FS
    Bandwidth 500HZ
    Output 0.5 ~ 4.5V
    Power Source 9 ~ 16Vdc
    Current
    Consumption    		 ≺10mA
    Operating
    Temp.    		 20℃ ~ +80℃
    Waterproof IP65
    Dimensions W40 x D40 x H24㎜
    Weight 65g







    Data Descriptions

    • Measuring Range = Max Range - Min Range

      •

    • Output V Range
      = 4.5V - 0.5V = 4V

      •

    • Zero Offset = 2.5V

      •

    • e.g. Measuring ±6g, Output 3.5V,

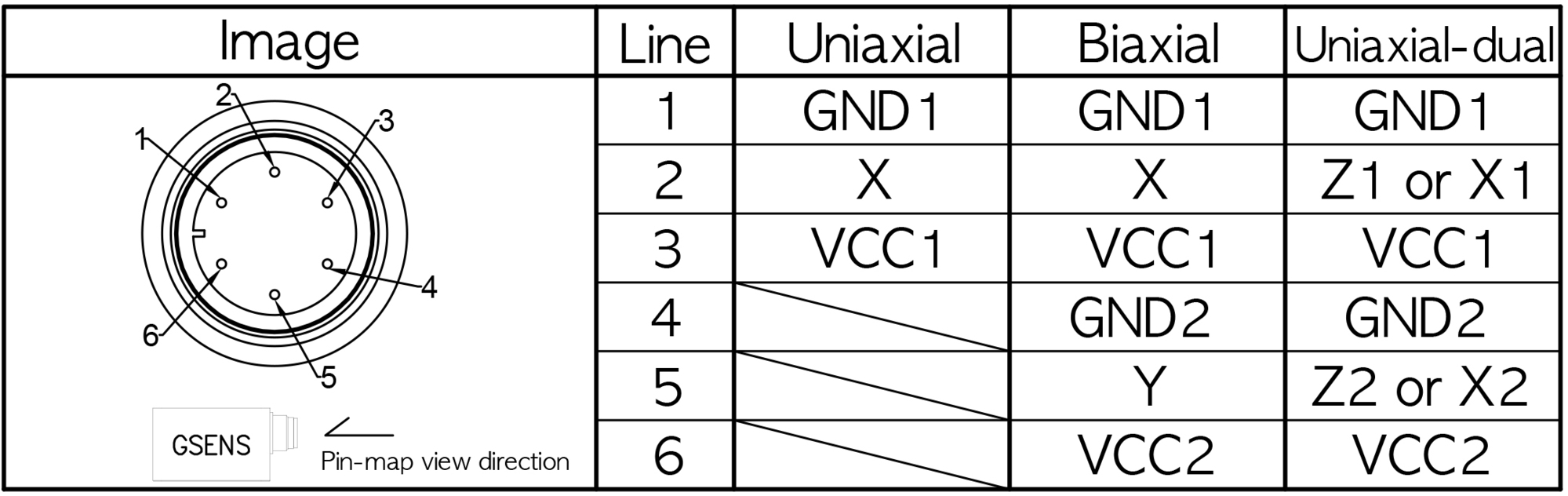

    Wiring Connections

    • GSENS is wired by circular M12 6pin plug.

      •

    • 4~6 pins on Uniaxial are applied to dual output specifications.







    Ordering Code

    ① Axis S
    S2
    D    		 Uniaxial (X or Y or Z)
    Uni-Dual (X or Y or Z)
    Biaxial (X+Y axis or X+Z axis)
    ② Measuring Range 2
    6
    12    		 ±2g
    ±6g
    ±12g
    • Code format : GSENS-AC-[①]-[②]
      e.g. GSENS-AC-D-6

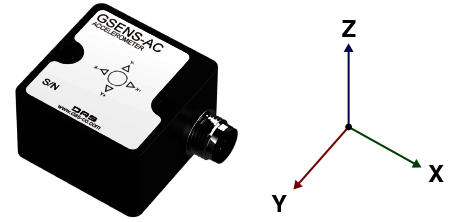

    Sensing Direction

    • Avobe images show sensing directions of GSENS-AC.







    Notes

    • Ground connection is recommended in noise occurred envirenment.

      •

    • Check wiring connections before use.

      •

    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

      •

    • Specifications, design and components can bd changed without prior notice to improve its performances.
