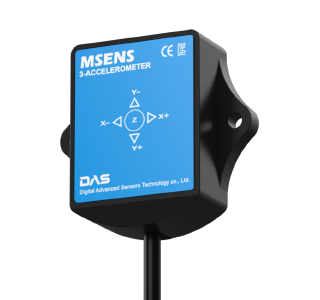

MSENS-AC Technical Datasheet
  •
    • MSENS-AC Technical Datasheet
  •
  •
  • High performance MEMS accelerometer (vibration sensor)
  • Micro-Processor mounted for stable sensing and data processing
  • Extended Kalman Filter, noise filtering and temperature compensation
  • Customized specifications for applying various industry areas
  • CE / FCC / ROHS
  •
  •
  •  Standard MEMS sensor series MSENS is represenative sensor series of DAS that applied Extended Kalman Filter and provides high performance and reliability. MSENS can be applied for wide applications such as heavy industries, warehouse and factory automation, robot industries, medical and other various industry areas.

    • 다운로드

    Specifications

    Item Specifications Remark
    Measuring
    Range    		 ±2g ~ ±8g default ±2g
    Sensitivity 1mg
    Zero Drift ±0.15mg/℃ -20℃~85℃
    Non-Linearity 0.1% @2g
    Response 100 Hz
    Output 0.5~4.5Vdc
    4.12~19.68mA
    RS485
    Power Source 10~30Vdc
    Current
    Consumption    		 ＜60mA @12Vdc
    Operating
    Temp.    		 -20℃~+85℃
    Waterproof IP65
    Dimensions W42x H57 x D20mm without mount
    Weight 68g
    • Measuring Range : Choose from ±2g, ±4g, ±8g







    Ordering Code

    ① Output MV
    MA
    485    		 0.5~4.5Vdc
    4.12~19.68mA
    RS485
    ② Axis Select 1 axis among X, Y, Z (RS485 outputs all)
    ③ Measuring Range 2
    4
    8    		 ±2g
    ±4g
    ±8g
    • Code format : GSENS-AC-[①]-[②]-[③]
      e.g. MSENS-AC-MA-X-4 / MSENS-AC-485-8

      •

    • MV and MA output types can output only one axis among X, Y, and Z axes.

      •

    • Optional
      • Receptacle P/N : MG64REC
      • To extend the length of the sensor cable, an additional cable with opposite connectors must be ordered.







    Dimensions

    • Refer attached drawings for detail dimensions and size.







    Wiring Connection

    Color Diff.Vdc / mA RS485
    RED V+
    BLACK GND (COM)
    GREEN 0.5~4.5Vdc / 4.12~19.68mA A (T+)
    WHITE N.C B (T-)
    • MSENS series is wired by MG610331-5 plug (Korea Electric Terminal Co., Ltd.). The plug can be deleted or wired with MG64REC (separately sold) according to specifications.







    Sensing Directions

    • Above images show sensing directions of MSENS-AC.







    RS485 Protocol
    • Communication Standards
    Baud rate 115,200 Data Bits 8
    Stop Bits 1 Parity None
    • Data Format (ASCII)
      = [ID_mode+scale_X_Y_Z]+Checksum+CR
      e.g. [1 02 -10 30 980]23
      • _ means space, + means non-space. Every echos (return messages) received in a pair of square bracket [ ].
      • Check Sum : Substitute ASCII of each bytes for HEX and calculate by XOR.



    • Commands
      e.g. <1 START>53+CR+LF
      • Carriage Return and Line Feed must be attached to end of commands. Every commands must be upper cases.
      • @ : Sensor ID, # : S/V
    <@> Measure data once.
    <@ START> Measure data continuously.
    <@ STOP> Stop measuring.
    <@ ID #> Set ID from @ to #
    <@ SPEED #> Baudrate setting
    <@ MODE #> Data mode setting
    <@ SCALE #> Scale setting
    <@ INTERVAL #> Data out-rate setting
    <@ SAVE> Save configurations
    <@ RESTORE> Factory reset
    • Set ID
      Default ID is 1. To parallel connect multiple sensors, set every sensor IDs before connect. ID can be set within 1~254.
    • Baurdrate setting
      Default Baudrate is 115,200bps. Baudrate can be set by S/V as following table. If send command without S/V, current value will returned.
    1 115,200
    2 57,600
    3 38,400



    • Data mode setting
      Choose Enable/Disable applying Extended Kalman Filter. Default value is 0. If send command without S/V, current value will returned.
    0 Enable filtering
    1 Disable filtering
    3 High_pass_filter



    • Measuring range setting
      Default measuring range is +/-2g. If send command without S/V, current value will returned.
    2 ±2g
    4 ±4g
    8 ±8g



    • Date out-rate setting
      Default out-rate is 100ms. Out-rate can be set within 10~1,000ms by 10ms of unit. In Angular Velocity mode, out-rate is fixed by 10ms. If send command without S/V, current value will returned.

      •

    • Save configurations
      Save ID and configurations. ID and any configurations will be initialized when shut power off without save.







    Notes

    • Ground connection is recommended in noise occurred environment.

      •

    • RS485 protocol may cause delay or crash by internal processing time and other reasons. If commanding is not in real-time, repeat sending the command.

      •

    • Check wiring connections before use.

      •

    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

      •

    • Specifications, design and components can be changed without prior notice to improve its performances.
