Voltage divider circuit consisted by potentiometers

Nylon coated stainless steel wire

Compact-size for easy to design and installation

High strength plastic housing for using in rough environments

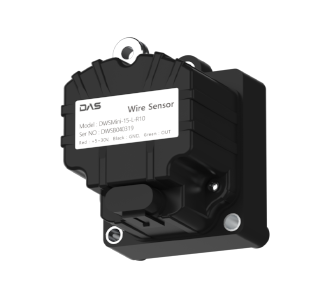

DWSMini is draw wire distance sensor that mount high precise potentiometer with compact-size outer housing. DWSmini is mainly applied for sensing and measuring length of outrigger of heavy equipments and special vehicles by its compact-size, waterproof and high strength housing design. CANopen protocol now available : constitute CAN network with length sensors for outrigger of mobile vehicle.

다운로드

Specification (CO type)

Item	Specification
Max. Length	1.5m	2m	3m
Output	CANOpen
Repeatability	≤10mm
Power Source	10 ~ 30Vdc
Potentiometer	5kΩ
Non-Linearity	0.25% FS
Wire Material	Nylon coated stainless steel
Wire Thickness	ø0.8
Durability	over 20,000 round trips
Operating Temp.	-20℃ ~ +80℃
Waterproof	IP65
Dimensions	W70 x D76.5 x H77㎜
Weight	150g

Length Conversion Formula

Length = (measurement voltage - Min voltage) x gain
- Gain (m/V)
  = Max Length / (Max Voltage - Min Voltage)
- Max voltage
  = Reference Max voltage x (applied voltage V / 5V)
- Min voltage
  = Min reference voltage x (applied voltage V / 5V)
- Max reference voltage
  = Max voltage when 5V is applied
- Min reference voltage
  = Min voltage when 5V is applied
- Max length = Max fetch length

CAN Protocol

Bitrate : 250kbps

Transmit Interval : 10㎳

Transmit Start : Automatically

Default COB ID (HEX) : 0x0A

Output data includes only angular data.

Refer each protocol manual for CANopen and SAE-J1939.

Wiring Connections

	Color	Analog	CANbus
DWSMini	RED	V+
	BLACK	GND (COM)
	GREEN	OUT+	CAN H
	WHITE		CAN L

DWSMini series is designed for Delphi 1216-2833 plug. Harness can be ordered optionally for wiring.

Analog output doesn't use the white wire.

Ordering Code

①	Length	15 20 30	1.5m 2m 3m
②	Output	(none) D	Single Output Dual Output
③	Direction	L R	Drawing from the Left Drawing from the Right
④	Output Format	C3	CANOpen
⑤	Digital Input	(none) DI	None-select Digital input 2 channels
⑥	Axis	X or Y XY	Select 1 axis 2 axis
⑦	Angle	xxxx	±180° (1 axis), minimum ±5° ±80° (1 axis), minimum ±5°
⑧	Installation Direction	F W	attached to the floor attach to the wall
⑨	CAN ID	00	CANOpen Communication Identification ID (HEX)

Code format
: DWSMini-[①]-[②]-[③]-[④]-[⑤]-[⑥]-[⑦]-[⑧]-[⑨]

e.g. DWSMini-15-L-CO-0x04
DWSMini-30-D-R-CO-DI-X-3090-F-0x03

If CANOpen output format is selected, options from ⑤ to ⑨ are available.

The direction code identifies the wire drawing direction when the product is attached from the front.

Options

Plug Harness : Delphi 1216-2833

Notes

DWS is designed for operating at low speed wire drawing condition. It may behind its durability if high speed drawing is repeated.

Immoderate drawing may cause damages of internal spring and wire.

Check wiring connections before use.

12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

Specifications, design and components can be changed without prior notice to improve its performances.
