High performance MEMS based inclinometer (tilt sensor)

Perfectly applicable with CANopenand SAE-J1939

Micro-Processor mounted for stable sensing and data processing

Black-rubber coated high strength plastic housing

Customized specifications for applying various industry areas JSENS-IN

To respond CAN that becoming mainstream communication standard for mobile vehicles, new-generation sensor series which perfectly applicable for CANopenand SAE-J1939 are now released. Introduce the series of high reliable CANbussensors exceed performances of current analog and serial communication.

다운로드

JSENS-IN Data sheet

Specifications

Item	Specification		Remark
Measuring Range	Uniaxial	±180˚	Settable
	Biaxial	±80˚	Settable
Accuracy	0.1˚
Non-Linearity	0.25% FS
Response	＜0.3sec		10˚/sec
Output Interval	10msec
Output	CANopen SAE-J1939
Power Source	10 ~ 30Vdc
Current Consumption	＜60mA		@12Vdc
Operating Temp.	-20℃ ~ +85℃
Waterproof	IP66
Dimensions	W40x H40 x D16mm		without mount
Weight	40g
Cable	Delphi 1216-2833		500mm

Measuring Range
e.g) -90˚ ~ +90˚ or -30˚ ~ +60˚

Biaxial : Each axis within ±5° ~ ±80°

The min/max angle must satisfy each axis' designated range.
Please inquire separately for less than -3º ~ +3º (deg)

Data Descriptions

Deg. from Analog - Vdc output
- Measuring Range = max range - min range
- Output V Range
  = 4.5V - 0.5V = 4V
- Zero Offset = 2.5V

e.g. Measuring range +/-90 deg, Output 3.5V,

Ordering Code

①	Axis	S D	Uniaxial Biaxial
②	Output	CO CJ	CANopen protocol SAE-J1939 protocol
③	Range	Set measuring range
④	Attechment Direction	F W	Floor mount Wall mount
⑤	Rotarional Direction	C NC	Terminating resistance (default) Non-terminating resistance

Code format: JSENS-IN- [①]-[②]-[③]-[④]-[⑤]
e.g) JSENS-IN-S-CO--180180-F-C

Optional
- Plug harness : Delphi 1213-2833
- COB ID : settable within HEX 01~7F

Termination resistance applies only to CAN connumication specifications.

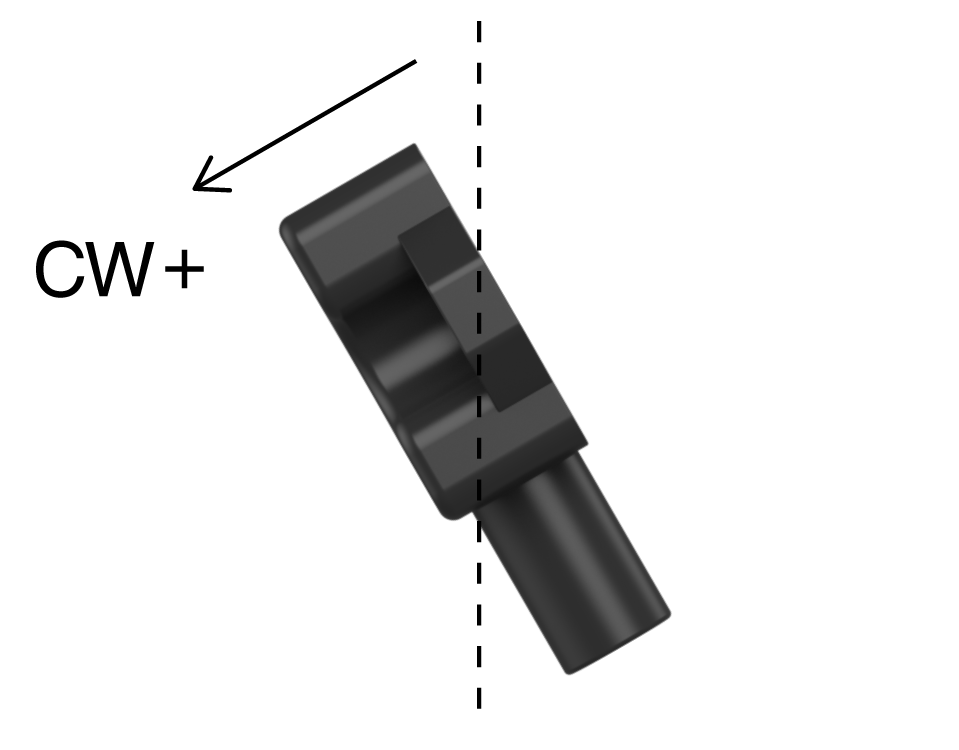

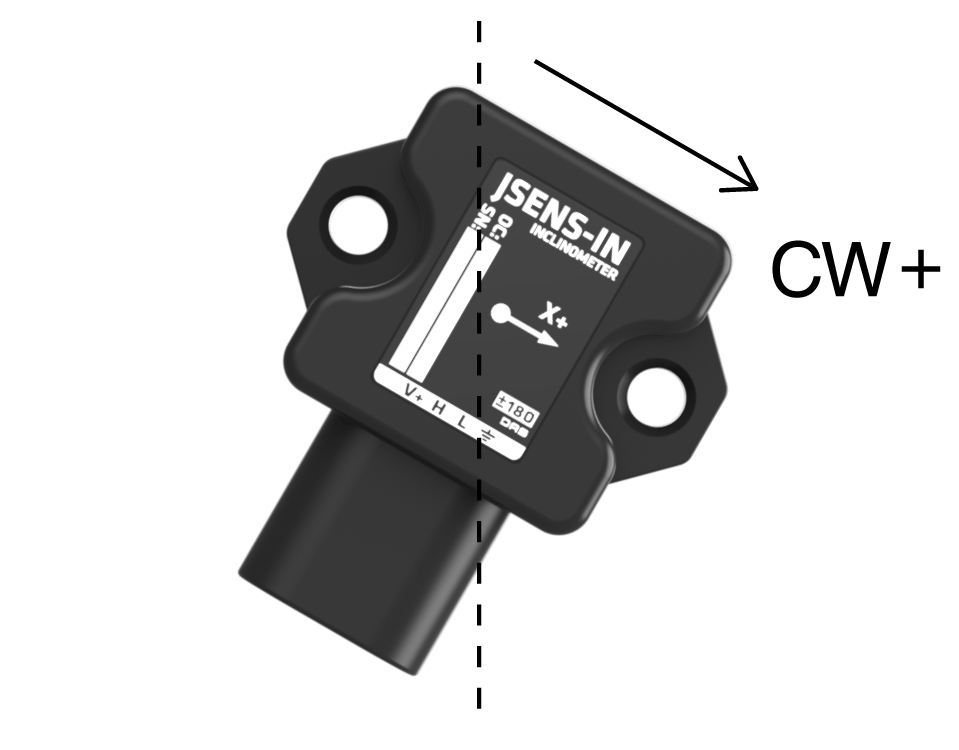

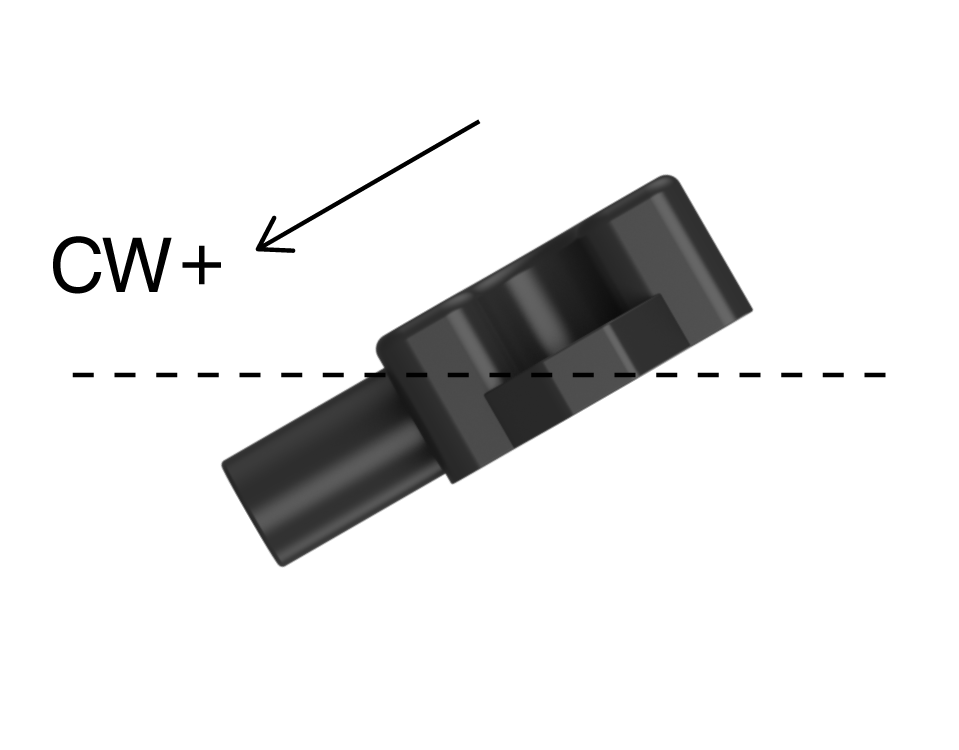

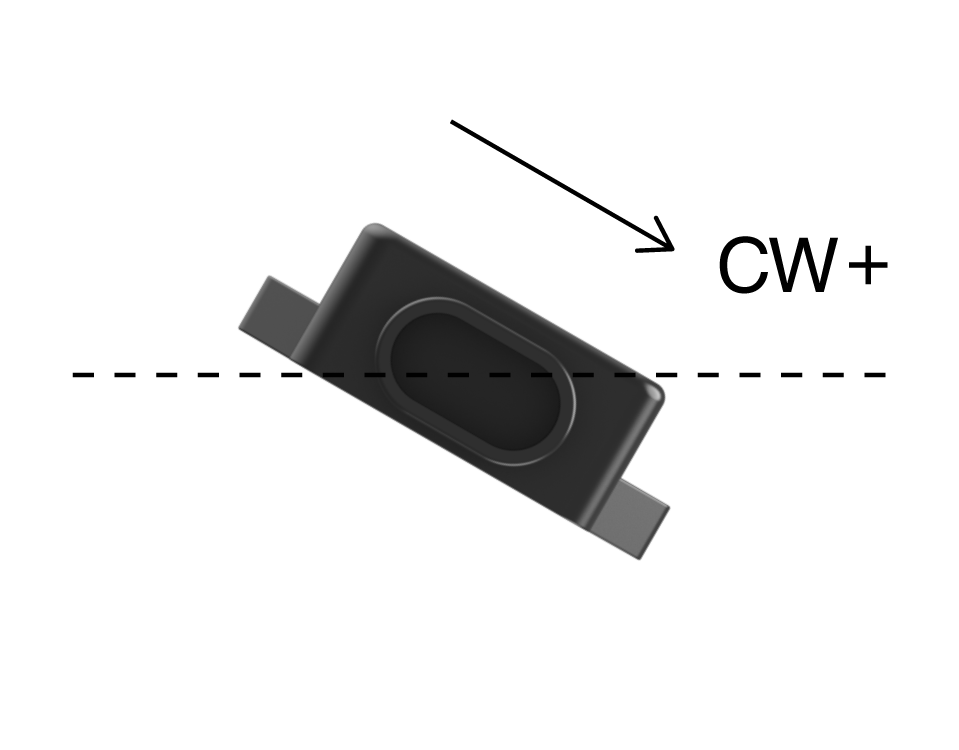

Sensing Directions

-axis, Floor Mount	X-axis, Wall Mount

Y-axis, Floor Mount	Y-axis, Wall Mount

Wiring Connections

Axis	Color	Analog	CANbus
Uniaxial	RED	V+
	BLACK	GND (COM)
	GREEN	X+	CAN H
Biaxial	WHITE	Y+	CAN L

JSENS series is designed for Delphi 1216-2833 plug. Harness can be drdered oprionallt for wiring.

Uniaxial doesn't usethe white wire.

CAN Protocol

Bitrate : 500kpbs

Transmit Interval : 10ms

Transmit Start : Automatically start

Default COB ID (HEX) : 0x0A

Output data includes only angular data.

Please refer to separate documents for CANopen and SAE-J1939 protocols.

Notes

Specification changes after shipment will be charged for a fee, so be sure to order with the correct specifications.

Ground connection is recommended in noise occurred environment.

MEMS based inclinometer (tilt sensor) measure tilt (degree) by gravity. Check sensing directions before use.

Check wiring connections before use.

12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

Specifications, design and components can be changed without prior notice to improve its performances.
