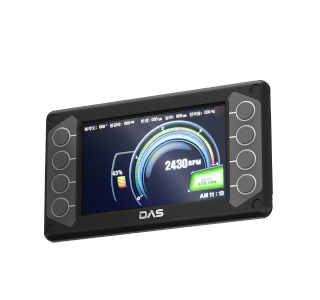

DMI-5S Datasheet (Catalog)
  •
    • DMI-5S Datasheet (Catalog)
  •
  •
  • High resolution (800 x 480) and high visibility (600cd) 5in TFT LCD
  • Support CAN and RS232 data communication
  • Touch screen or 8-button keypad is equipped as an input device
  • Analog/Digital I/O, Internal speaker and Bluetooth module (optional)
  •
  •
  •  DMI-5S is an industrial display (human machine interface) specialized in heavy duty and special vehicle with compact size, customizable and various functions. Touch screen or 8-button keypad is equipped as an input device and CAN, analog and digital I/O are supported to perform various functions customer needs.

    • 다운로드

    Specifications

    Item Specification Remarks
    Processor ARM Cortex M4 (168MHz)
    Application up to 1Mb
    Flash Memory micro-SD, up to 16Gb
    Power Source 10 ~ 30Vdc
    Current Drain 300mA @12Vdc
    Display 5inch, TFT LCD,
    600cd/m2    		 WVGA
    (800×400, 5:3)
    Input Device Touch screen,
    8 -Button keypad
    Data
    Communication    		 CAN, RS232
    Options Internal speaker,
    Bluetooth V4.2
    Operating Temp. -20℃ ~ +65℃
    Output Port 1xDO (400mA) 100% of input voltage
    Input Port 2xAI / 2xDI 0~5V,
    12bit / 10~32V
    Waterproof IP65 Front only
    Dimensions W170 × D47.7 × H96mm without mount
    Weight 260g without mount







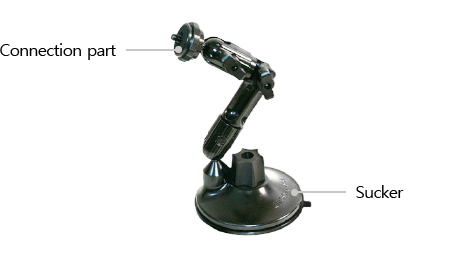

    Dedicated Cradle







    Features

    • Acquired KC certification in Korea.

      •

    • It is equipped with soft silicon switches and a full touch screen.

      •

    • The front part is waterproofed for use in outdoor environments.

      •

    • You can select sound output options. (optional)

      •

    • Dedicated program development training support or development is possible after consultation. (optional)

      •

    • It passed the environmental test of -20℃ ~ 65℃.

      •

    • It supports CAN communication and RS232 communication. (CANOpen, J1932)

      •

    • It supports vivid brightness of 600 cd/m²

      •

    • There are various applications of heavy equipment such as cranes and aerial work platforms.







    Development Environment

    • Support GUI+C intergrated project

      •

    • Utilizing existing codes and libraries by C based control programming

      •

    • Easy to design by object-orented and screen-orented GUI designing

      •

    • Easy to porting by intergrated HAL library

      •

    • Library manager for convenient library management

      •

    • Support intergrated library site

      •

    • Support USB boot-loader

      •

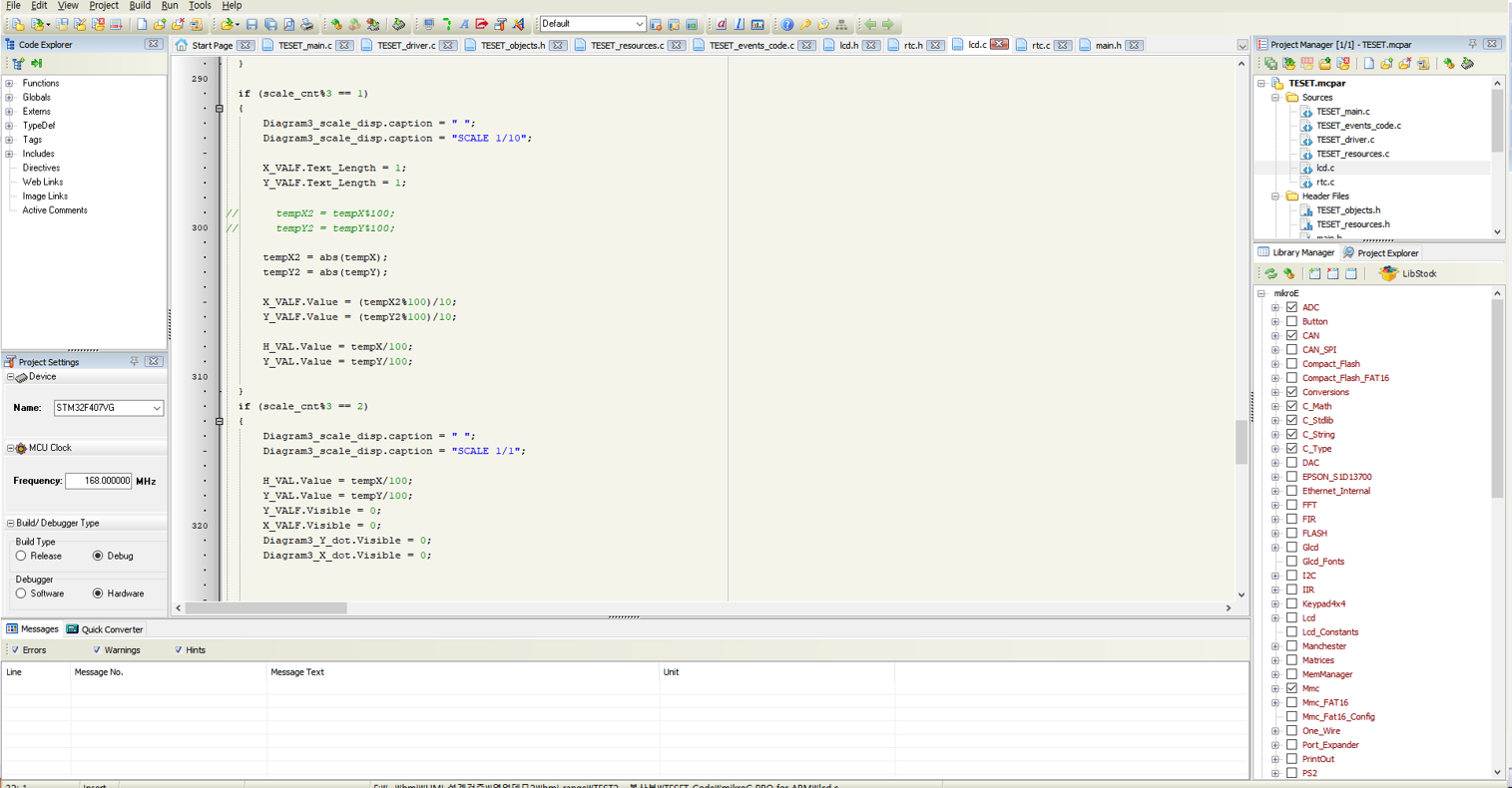

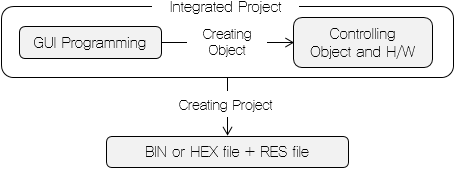

    • GUI Programming | Visual-TFT

      •

    • Controlling object and H/W, Compiler







    Wiring Connection

    NO CAN1 CAN2 DI/DO AI/AO
    1 DC IN (V+) NC D-OUT Vcc-OUT
    2 CAN1 H CAN2 H GND GND
    3 CAN1 L CAN2 L D-IN 1 A-IN 1
    4 GND GND D-IN 2 A-IN 2







    Notes

    • Software tools for programing : mikroC PRO for ARM, Visual TFT (MikroElektronika)

      •

    • DAS supports technical supports and training for programming and customizing of DMI series.

      •

    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

      •

    • Specifications, design and components can be changed without prior notice to improve its performances.
