A joystick that is easy to use for extended periods of time

Dual communicating for minimizing communication disruption and any problems

User operation sensitivity setting function

Can be used for more than 40 hours with a single charge (18650 3.7V / 3A Li-ion battery)

CAN communication output support, transmitter wired function delay (connection cable sold separately)

The DAS wireless remote transceiver IRON series is a wireless transceiver for safe use of wireless control of construction equipment (aerial lifts, cranes, pump cars, tower cranes, wireless excavators, agricultural machinery, etc.). It uses the basic frequency of 447 MHz and has a built-in channel change function to prevent cross-talk. Using 2.4 GHz band Bluetooth communication at the same time, the status of construction equipment is wirelessly received and displayed on the graphic LCD mounted on the transmitter to improve equipment It helps to operate safely. In addition, the wireless transmitter can be used continuously for more than 40 hours with a single charge through a low power consumption design.

다운로드

IRON series Overall

INNOVATIVE
IRON series provides more safely and effectively operating environment by real-time data feedback, real-time video monitoring, dual-band communicating and innovative power-saving technology.

DEPENDABLE
IRON series has been planned, developed and manufactured by over 15 years of experience, quality and reliability of DAS plus professional ideas of experts in the industry.

SAFETY
IRON series is designed to prioritize safety of driver(operator) and working environment as the top with applying high reliability and newest technologies.

SERVICE
Customer services and technical supports are most valuable things to every customers. DAS rapidly responses necessary services and supports to minimize any loss of customers.

General Specifications

Transmitter Specification

Item	Specification
Display	Graphics 128*128 (옵션)
Wireless Frequency	447 MHz / 2.4 GHz
Battery	Li-ion 18560 (3.7V / 3A)
Battery Charging Time	5 hours
Battery Duration	Over 40 hours
Operating Temp.	-20 ~ +70 Celsius
Storage Temp.	-40 ~ +85 Celsius
Waterproof	IP65
Weight	1.1kg
Size	W 236 x H 148 x D 111

Receiver

Item	Specification
LED Status Indication	7 LED
Wireless Frequency	447 MHz / 2.4 GHz
Power Source	DC 8-26 VDC, 3A Min
Data Communication	CAN
Relay Output	Relay 10A
Operating Temp.	-20 ~ +70 Celsius
Storage Temp.	-40 ~ +85 Celsius
Waterproof	IP65
Weight	0.4kg
Size	W 92 x H 145 x D 80 (with antenna H 219)

Features

Address module applied
24bit address module which able to generating over 16,000,000 unique addresses is applied to assign each addresses without overlap.

Electronic Key-Lock
Electronic Key-Lock increases security to operate transmitter by an owner only.

18650 Li-ion Battery
Commercially available and reliable 18650 Li-ion battery is applied for easy to recharging and management.

Wired CAN communication
Operating by wired CAN communication in special case of unable to using wireless.

Quick-setting
Quick settings for changing amount of minimum and maximum velocity of control sticks to operate equipments effectively.

Monitoring Software
Support monitoring software which monitoring status of the transmitter.

Smooth Handling
To reduce the fatigue of operation, a soft hall sensor type joystick is adopted. In addition, various applications such as single-direction 1-axis joystick, bi-directional cross-type 2-axis joystick, and deadman joystick operated while pressing the joystick are possible.

Certificate of Broadcasting and Communication Equipments
IRON series has been certified to certificate of Broadcasting and Communication Equipments and made by passing thorough wireless test.

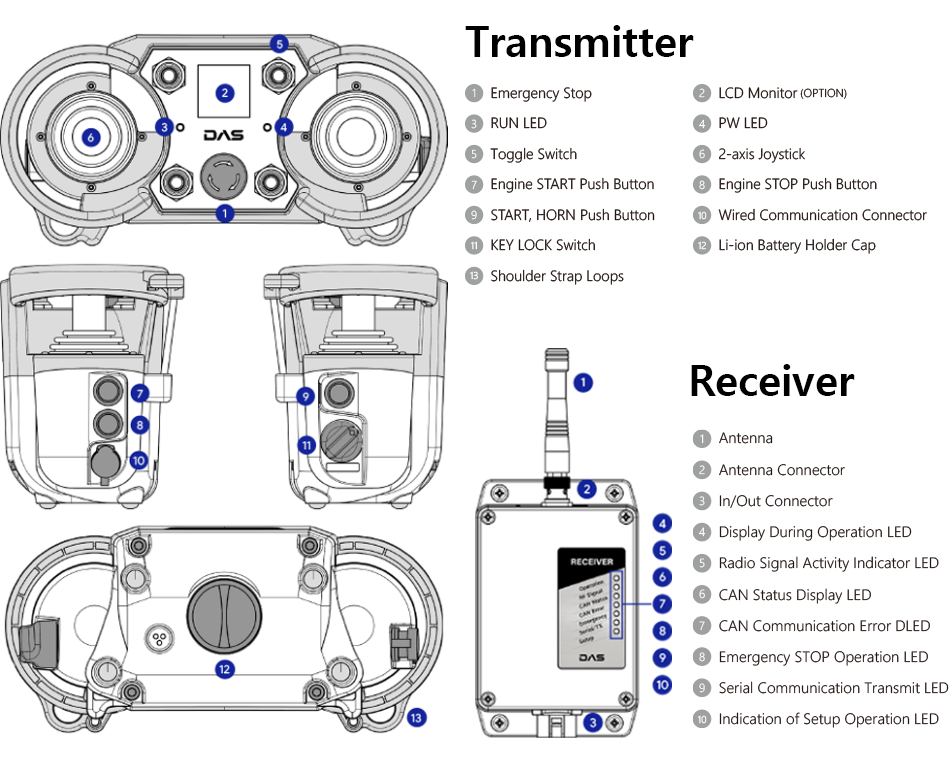

Layout (General)

Notes

For single-user equipment, it may be difficult to apply wireless remote control.

CAN network between the receiver and the equipment is required as IRON series operates equipments by CAN from the receiver.

If CAN is not applied to the equipment, development to add a CAN controller may be required.

If CAN is applied to the equipment but CAN cannot be operated directly, technical support from DAS is required and engineering fees may be charged.

Receiver harness must be wired along the structure of the equipment to avoid any damages.

Do not weld to equipment while the receiver harness is wired.

Refer to the wiring method and use it after proper wiring and wiring.

To get details, please visit iDAS website : http://i-das.kr

12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.

Specifications, design and components can be changed without prior notice to improve its performances.
