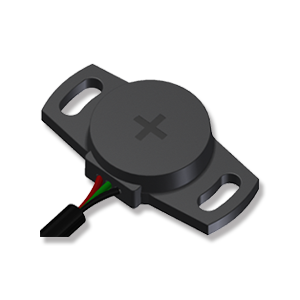

General Specifications

• Measuring Range : Infinite rotation from the origin-mark.

Installation

• Attach and fix the sensor and magnet to rotating concentrically with center of the rotating.
• The section of origin-mark of the magnet must be fixed toward + mark of the sensor and the gap between the sensor and the magnet must be within 1mm.
• There is immeasurable section near zero position as 0 degrees and 360 degrees are same position and moreover output at this point is not continuous.
• Image shows sensing directions of DRS.

Data Descriptions

• Analog Vdc

  • Measuring Range : max range - min range
  • Output V Range : 4.5V - 0.5V = 4V
  • Zero Offset : 0.5V



• e.g. DRS-10, Output 2.5V,






Dimensions

• Refer attached drawings for detail dimensions and size.

Ordering Code

• Format : DRS- [1] - [2]


  [1] Model	10 M10		0 ... 360 deg range 0 ... 3,600 deg range
  [2] Direction	CW CCW		Clockwise Counter-clockwise


  e.g. DRS-10-CW

• Options
  • Receptacle P/N : MG64REC
  • Cable length : additional cost per meter
  • The plug can be deleted when placed order.

Wiring Connections

• DRS series is wired by MG610331-5 plug (Korea Electric Terminal Co., Ltd.). The plug can be deleted when placed order.

NOTES

• Ground connection is recommended in noise occurred environment.
• Check installation and sensing directions before use.
• Check wiring connections before use.
• 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.
• Specifications, design and components can be changed without prior notice to improve its performances.
