EPEC 3610 Control Unit 릴리즈 노트
  •
  • EPEC 3610 Control Unit 릴리즈 노트
  •
  •
  • I/O 69(35 input + 34 Output)
  • 2개의 CAN 포트
  • Ref pin(5V) : 4
  • 5 A POWER_DO outputs
  • CE, 국내 KC 미인증(향 후 인증 예정)
  •
  •
  •  많은 IO 포트를 가지고 있는 확장 모듈입니다.
  • 다운로드

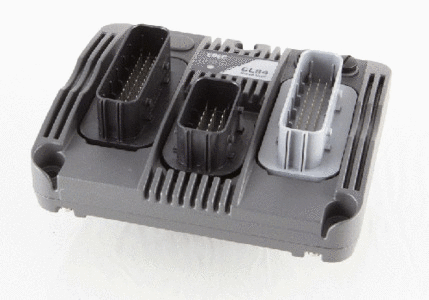

    EPEC GL84 SLAVE UNIT

    Epec GL84 Slave Unit is the best slave product for centralized control system architecture where one master/central unit controls multiple slaves. GL84 has a whopping 27 GND pins for sensors and actuators and CAN1 is also routed to M12 connectors for easy wiring. GL84 Slave Unit’s cycle time is extremely fast – it feels like the I/O is actually connected to the master/central unit.

    The unit has a new generation housing and connector solution that enables plenty of I/O in a compact housing. The sleek shaped casing works to protect the electronics against mechanical wear. The leak-proof aluminum housing has also been widely tested against different environmental conditions, the housing is even protected against high-pressure washing (IP69).

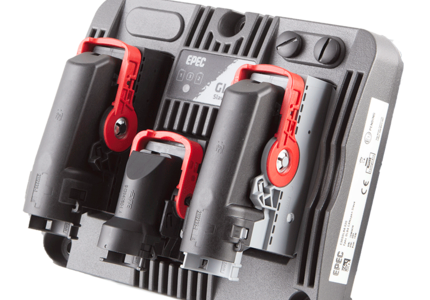

    The unit is equipped with a signal LED for diagnostics. The unit’s LEAVYSEAL connectors have integrated strain relief and lever locking that are designed for high vibration environments. Single Wire Seal (SWS) system also ensures safe and robust sealing for wires.



    • Three-colored diagnostic LED for quick status check and fault detection





    제품 사양

    항목 세부사양
    프로세서 32-bit CPU
    CAN 2
    I/O 69 (35 inputs + 34 outputs)
    REF pins (5 V) 4
    GND pins 27
    Power DO output 5A
    Total current 60A
    3 power supply groups Safety cut-off feature in a group of 10 PWM/DO outputs
    IP class IP69
    저전압 한계 8VDC
    동작 온도 -40℃ ... +85℃

    •
