3DS Technical Datasheet
  •
  • 3DS Technical Datasheet
  •
  •
  •
  •

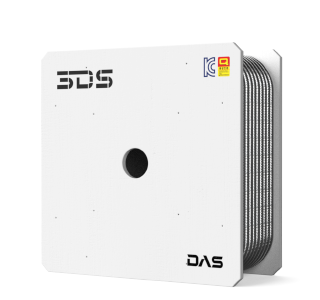

  •  3-Dimension displacement measurement system : 3DS is high performance MEMS based inclinometer system that innovatively improved from current displacement measurement system by enhanced technologies and reliabilities of DAS. 3DS is applied the new automatic temperature compensated technology to improve temperature drift that the weakness of MEMS inclinometer. 3DS provides efficient and perfectly suitable measurement under any measuring circumstances.
  • Video Clip (3DS Demonstration, Korean)



     This video shows demonstrations for 3D measurement system.
     You can see that movement of the sensor and measured data from the sensor are perfectly equally same on the video.
     It also helps you to understand what 3DS is and how the measurement works.





    Technical Specifications

    Items Specifications
    Each Segment Length 0.5 meters or 1 meter
    Total System Length Up to 200 meters or 200 segments
    Power Source 10...30VDC
    Current Consumption 4.2mA per segment @12VDC
    Resolution 0.63mm per 30 meters
    Accuracy 1.50mm per 30 meters
    Measuring Range 360 degrees (2D or 3D)
    Operating Temperature -30...+70 celsius
    Waterproof 20ATM
    Flexibility of Joint Up to 90 degrees




    Applications

    • Monitoring ground uplift and subsidence around railroad.
    • Monitoring ground, incline plane deformation and movement during construction.
    • Convergence measurement of tunnel.
    • Measuring and monitoring all of angular, distance displacement for constructions & civil engineering.



    Technical Features

    • ERMSA (Error Reduction Method for Sensor Array)
      Innovatively improved automatic temperature compensated technology applied to rid of accumulating error from array calculations.


    • Complete Waterproofing
      High-pressure thread sealing applied instead of fragile rubber O-rings.

    • Link with Campbell Scientific's
      Can be linked and measure with Campbell Scientific's data logging devices such as CR1000 · CR1000X.



    • Enhanced Electric Protection
      Insulation resistive power supplier, electrical noise filter and isolation converter protect electric noise, surge and shock efficiently.

    •


    • Solar Powered
      Able to operated by solar powered. (e.g. 12VDC / 50W panel for 30 seg. per hour)

    •
    • Real-time monitoring
      Real-time sites monitoring and database on wireless cloud server by 4G LTE.

    •

    • Various patent technologies applied.
    • Light Weight
      Weight lightened of 30% from current DAS array-measurement system.


    NOTES

    • Check wiring connections before use.
    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.
    • Specifications, design and components can be changed without prior notice to improve its performances.
