UDS10 Technical Datasheet
  •
  • UDS10 Technical Datasheet
  •
  •
  • Noise cancelling algorithm to avoid environmental effect
  • Compact size, light-weight and cost-effectiveness
  • Customers can set measuring range by themselves
  •
  •

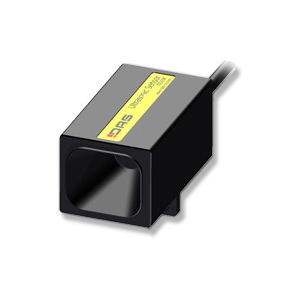

  •  UDS10 is compact ultrasonic distance meter that improved abilities of environment-proof from such as noise and vibration by noise cancelling algorithm. Customers can set measuring distance range by themselves for measuring distance, detecting object.
  • General Specifications

    Item Specification Remark
    Ultrasonic Frequency 40KHz
    Distance Range 0.5 ... 3m Default
    Max. Range up to 5m
    Power Source 15 ... 20VDC
    Current Consumption <30mA
    Output of A type 0.5 ... 4.5Vdc
    Output of B type 5V Hi / Low
    Dimensions W27 x H24 x D49mm Without mount
    Weight 25g

    • Verifying repeatability is not possible regarding characteristic of ultrasonic which very sensitive to environmental effect such as temperature, humidity or air density.



    Distance Range Settings

    Default distance range is 0.5 to 3 meters. Customers can set the range by themselves if necessary.

    • Fix the sensor in a large indoor place where steady air condition and non-obstacles.
    • Place a flat panel which over 50 x 50 cm at the minimum distance of required range.
    • Connect Teach-In wire (White) to GND (Black) for 3 seconds. LED indicator blinks 3 times per second if completed.
    • Move the panel at the maximum distance of required range. Maximum distance is up to 5 meters.
    • Connect Teach-In wire to GND again. LED indicator is on and maintained if completed.
    • Power off the sensor and on again.

    Notice, output may reversed if the minimum range is over the maximum range.



    Data Descriptions for A-type



      • (Distance) Range : max range – min range
      • 4V (Output V Range) : 4.5V – 0.5V = 4V

    • e.g. 0.5...3m range, Output 2.5V,

    Detecting Object (B-type)

    UDS10 B-type exports 5V Hi level signal when detecting a object in its distance range otherwise 0V Lo level signal. This level signal cannot operate any external elements.



    Factory Reset

    Connect Teach-In wire to GND at the same time as powred on and maintain for 3 seconds. Distance range will be cleared as the default.



    Dimensions

    • Refer attached drawings for detail dimensions and size.

    Wiring Connections

    • UDS10 is wired by MOLEX 4P plug.

    • Color Description
      UDS10A/B RED V+
      BLACK GND (COM)
      GREEN Output+
      WHITE Teach-In







    Ordering Code

    • Format : UDS10[Type]

    • Type A
      B
      C
      Distance Measurement
      Object Detector
      Open-Collector-type

      e.g. UDS10A / UDS10B

    • Options
      • Adding IP65 waterproof sealing (charged)

    NOTES

    • Noise and ripple may occurs malfunctions.
    • Obstacles, continuous noise or unsteady air condition may occurs malfunctions.
    • Set distance range only in case of necessary. Keep the panel not to incline during the setting.
    • Ultrasonic has not straightness as laser.
    • Resolution is changing along with distance range. Narrow range is better for the resolution.
    • Specifications, design and components can be changed without prior notice to improve its performances.
