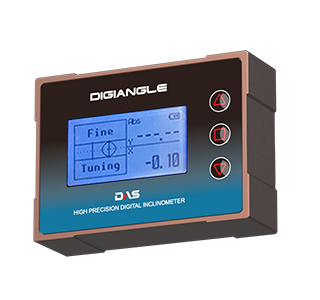

DIGIANGLE-1D/2D Technical Datasheet
  •
  • DIGIANGLE-1D/2D Technical Datasheet
  •
  •
  • Digital protractor for measuring inclination, displacement, movement and horizontality or verticality.
  • High precise MEMS inclinometer
  • High strength aluminium housing and optional handle
  • Low-power LCD display and automatic power saving
  •
  •
  •  Digital protractor (angular indicator) DIGIANGLE-1D/2D is high precise inclinometer to measure inclination, displacement and movement of buildings and structures. DIGIANGLE-1D/2D is applicable for measuring any kind of horizontality, verticality or precise angular measurement.
  • General Specifications

    Item Specifications Remarks
    Measuring Range ±30° (deg)
    Resolution 0.001° (deg)
    Notation Precision 0.1° ~ 0.001° (deg) / 0.01mm
    Non-Linearity 0.1%FS
    Battery 3.7V 500mAh (Li-ion)
    Battery Duration 150hour
    Communication output USB to RS232 Default 115.200
    Charging Power USB 5V 500mA
    Operating Temp. 0℃ ~ +65℃
    Dimensions W110 x D32 x H80mm
    Weight 430g







    Data Descriptions

    • Convert from degree to length displacement
      • L = 1,000㎜ (fixed)
      • θ = measured angular degree
    •

    • For convenience, standard length on DIGIALGNE-1D is fixed as 1,000mm.







    Measurements

    Measuring inclination, displacement and movement by DIGIANGLE-1D as following :

    • ABS (Absolute Value, with ABS marker)
      Measuring from zero-position of factory value.
    •

    • None-ABS (without ABS marker)
      Measuring from zero-position by zero-set. For convenience, set initial value as zero-position in long-term measurement place.
    •

    • Check-Sum
      Check-sum is necessary at measuring displacement or movement in geotechnical engineering. Once measure A0 direction, measure A180 direction again and take the difference from two measurements.





    Instructions



    1
      Press □button long to power on and off. Push it short to hold and unholdcurrent value. During the value is halt, HOLD message is appeared on the display.
    2
      You can turn the screen lighting (backlight) on and off by press the ▽button. If you press long(about 2 seconds), it switches to the user change menu screen.
    3
      If you press the △button, the ABS display will be canceled on the screen, and you can set the current position as the origin (user reference angle). When pressed again, ABS appears on the screen and returns to the factory default origin (absolute value).
    4
      X-axis measurement angle and length. (Length = 1000 x sinθ)
    5
      Y-axis measurement angle and length. (not for 1D)
    6
      Measured degree is below 0.3 deg, Fine Tuning message is appeared.
    7
      Shows battery status. C mark is appeared during recharging.
    • Power saving : Over 3 minutes without any command then power is off automatically.







    Ordering Code

    Axis 1D
    2D
    1 axis
    2 axis
    Direction
    (SET)
    W-SET





    F-SET
    (2D only F)

    • Format : DIGIANGLE - [MODEL]
    •

    • Options
      • Items that can be ordered separately Civil engineering · Safety · Maintenance Jig (handle) for measurement
        (Circular plate attached to the measurement site is not an item handled by our company)
    •

    • Accessories
      • Leather pouch with shoulder strap
      • USB-A to A cable (2.0m)















    NOTES

    • MEMS based inclinometer (tilt sensor) measures tilt (degree) by gravity. Check sensing directions before use.
    •

    • Check battery status before use.
    •

    • Color of the aluminium housing can be changed without prior notice. (unrelated to performance or quality)
    •

    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.
    •

    • Specifications, design and components can be changed without prior notice to improve its performances.
