M1-MEMS Technical Datasheet
  •
  • M1-MEMS Technical Datasheet
  •
  •

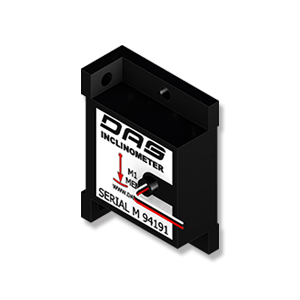

  • High performance MEMS based compact inclinometer (tilt sensor)
  • Micro-Processor mounted for stable sensing and data processing
  • High strength PC and ABS housing
  • Compact size and high cost-effectiveness
  •
  •
  •  High precise and compact inclinometer M1-MEMS performs angular measurement as a part of controlling and tracking systems such as solar-panels, machineries, closing and opening systems and other various applications.
  • General Specifications

    Item Specification Remark
    Measuring Range Uniaxial +/-30 deg
    Resolution 0.005 deg
    Temp. Drift +/-0.014 deg per celsius
    Response <0.5 sec
    Output 10 ... 90% of power source Ratio-type
    Power Source 4.5 ... 5.5VDC
    Current Consumption <10mA @5VDC
    Operating Temp. -20 ... +80 celsius
    Dimensions W28 x H37 x D12mm Without Pins
    Weight 13g

    • Output : 0.5 ... 4.5Vdc @5VDC

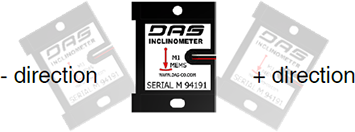

    Sensing Directions




    Wiring Connections

    • M1-MEMS wired by MOLEX 3P plug.

    • Color Description
      M1-MEMS RED V+
      BLACK GND (COM)
      WHITE Output+


    Data Descriptions

    • Deg. from Analog - Vdc output



      • Measuring Range : max range - min range
      • Output V Range : 4.5V - 0.5V = 4V
      • Zero Offset : 2.5V

    • e.g. Measuring range +/-30 deg, Output 3.5V,




    NOTES

    • M1-MEMS has not been applied any stabilizing circuit or protection circuit.
    • To stable using, stabilizing and protection circuit on the systems are necessary.
    • Regulated voltage power source is recommended.
    • MEMS based inclinometer (tilt sensor) measure tilt (degree) by gravity. Check sensing directions before use.
    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.
    • Specifications, design and components can be changed without prior notice to improve its performances.
