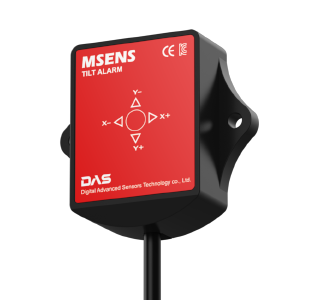

MSENS-TA Technical Datasheet
  •
    • MSENS-TA Technical Datasheet
  •
  •
  • High performance MEMS and relays mounted tilt switch
  • Micro-Processor mounted for stable sensing and data processing
  • Extended Kalman Filter, noise filtering and temperature compensation
  • Customized specifications for applying various industry areas
  • CE / FCC / ROHS / Q-mark (KO)
  •
  •
  •  Standard MEMS sensor series MSENS is represenative sensor series of DAS that applied Extended Kalman Filter and provides high performance and reliability. MSENS can be applied for wide applications such as heavy industries, warehouse and factory automation, robot industries, medical and other various industry areas.

    • 다운로드

    General Specifications

    Item Specifications Remark
    Measuring
    Range     		Uniaxial +/-1 ... +/-180 deg settable
    Biaxial +/-5 ... +/-80 deg settable
    Resolution 0.1 deg
    Non-Linearity 0.25% FS
    Response ＜1 sec
    Output Uniaxial Relay 1ch
    Uniaxial Relay 2ch
    Biaxial Relay
    Power Source 10 ... 30Vdc
    Current
    Consumption     		＜100mA @12Vdc
    Operating
    Temp.     		-20 ... +85 celsius
    Waterproof IP65
    Dimensions W42 x D57 x H20mm
    Weight 68g

    • Uniaxial : Set freely within +/-1 ... +/-180 deg
      e.g. -30 ... +90 deg / 0 ... +120 deg
    • Biaxial : Each axis within +/-5 ... +/-80 deg

    • Uniaxial Relay 2ch : Relay out separately each (-) direction and (+) direction from the origin.
    • Others : Relay out depends on each axises.

    • Dimensions are without mounting.

    Sensing Directions

    X-axis, [Floor] X-axis, [Wall]
    Y-axis, [Floor] Y-axis, [Wall]

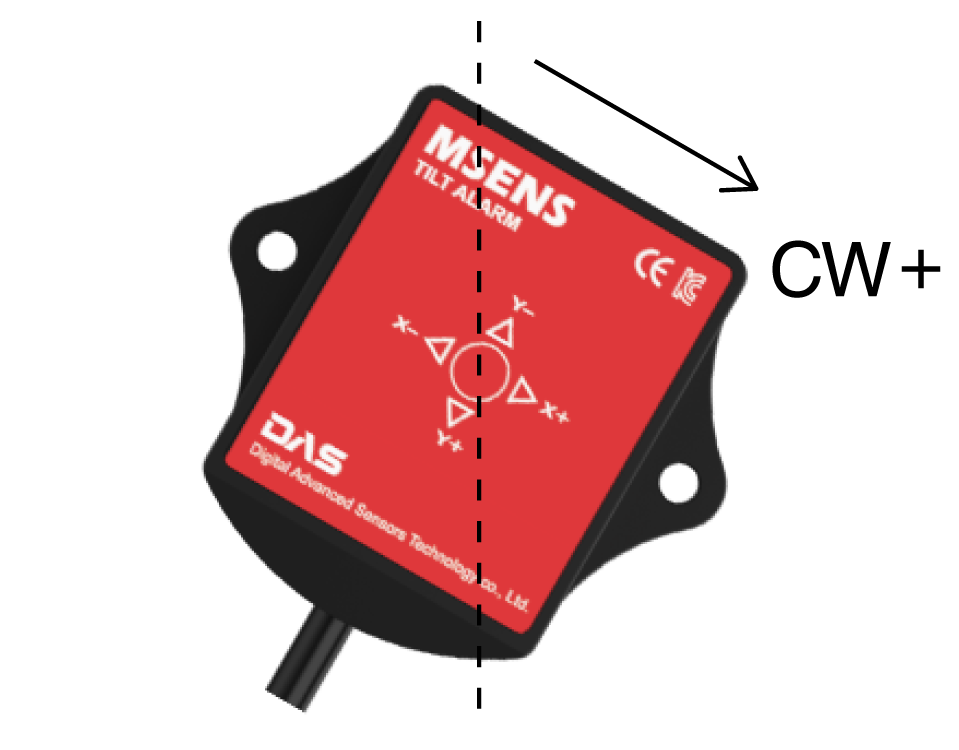

    • Above images show sensing directions of MSENS-TA.












    Wiring Connections

    • MSENS series is wired by MG610331-5 plug (Korea Electric Terminal Co., Ltd.). The plug can be deleted when placed order.
    • RS485 output has always 4C connection.

      • Color Uniaxial 2ch Others
      RED V+
      BLACK GND (COM)
      GREEN (+) direction X-axis
      WHITE (-) direction Y-axis

    Dimensions

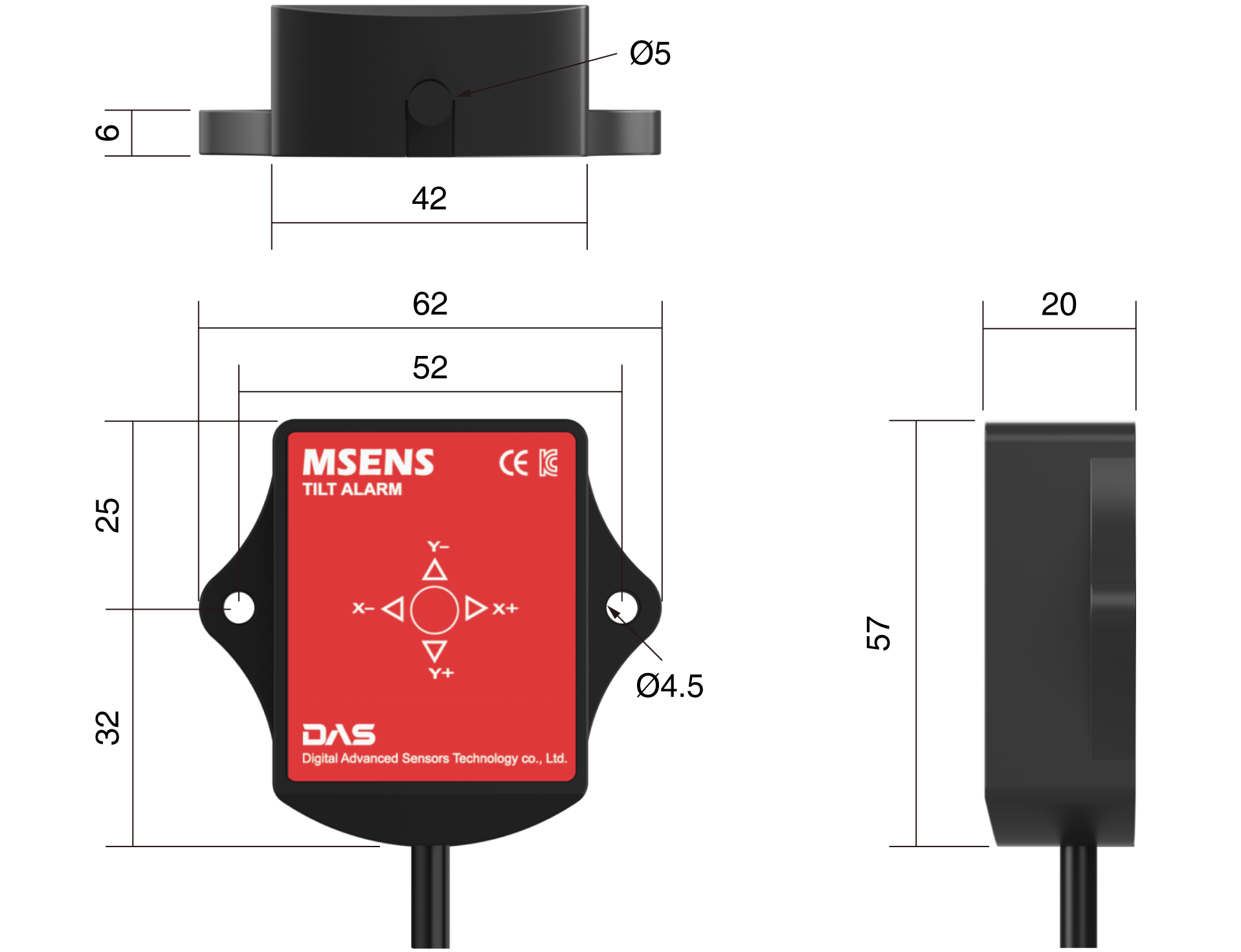

    • Refer attached drawings for detail dimensions and size.


    Ordering Code

    • Format : MSENS-TA- [1] - [2] - [3] - [4] - [5]

      • [1]
      • S1
      • S2
      • D
      • Uniaxial
      • Uniaxial 2ch
      • Biaxial
      [2]
      • H
      • L
      • Normal-Open (Arbeit contact)
      • Normal-Close (Break contact)
      [3] Set measuring range
      [4]
      • F
      • W
      • sensing direction of [Floor]
      • sensing direction of [Wall]
      [5]
      • CW
      • CCW
      • Clockwise (default)
      • Counter-Clockwise

      e.g. MSENS-TA-D-H-70-F-CW
      measuring range 70 means +/-70 deg

    • Options
      • Receptacle P/N : MG64REC
      • Cable length : additional cost per meter
      • The plug can be deleted when placed order.

    NOTES

    • Ground connection is recommended in noise occurred environment.
    • MEMS based inclinometer (tilt sensor) measure tilt (degree) by gravity. Check sensing directions before use.
    • Check wiring connections before use.
    • 12 months warranty is provided after released. Warranty provided only in case of using for designed purpose correctly.
    • Specifications, design and components can be changed without prior notice to improve its performances.
